Formats

Ørestad Station Domination contains of five distinct creative formats, each with unique specifications tailored to their specific placement and technical requirements.

• Format 1: Glass Railling trapper
• Format 2: Dobbeltsidet bannere
• Format 3: Digital Adshel
• Format 4: Glass Railling Platform
• Format 5: Platform Screen Doors

Download

Before initiating layout and production of this Station Domination, the individual specifications for each format must be carefully reviewed, as dimensions, technical requirements, and design considerations vary significantly between formats. We have compiled all relevant information and technical specifications required for the production of the Station Domination, including dimensions, installation conditions, and delivery requirements.

Design guidelines and ready-to-use InDesign templates

Each format includes detailed design guidelines, installation view, dimensions, and downloadable template files. Please ensure you select the correct specifications for your assigned format(s) and adhere to all technical requirements to ensure optimal production and installation.

Deadlines and Responsibilities

Print ready files: File(s) must be uploaded to Bauer Media Outdoor at the latest 15 working days before the start of the campaign.‍

Digital material: Must be uploaded at least 3 days prior to campaign start. NB. For HTML solutions material must be delivered minimum 10 working days before campaign start.

‍Co-branding: If you intend to advertise together with another brand, we must be notified of this no later than 4 weeks before the start of the campaign to ensure delivery of the reserved campaign.

Responsibility: It is the advertiser’s responsibility to ensure that the layout or design does not conflict with the Danish Marketing Act or infringe third party intangible rights, and that the material complies with the stated specifications. See our general business terms.

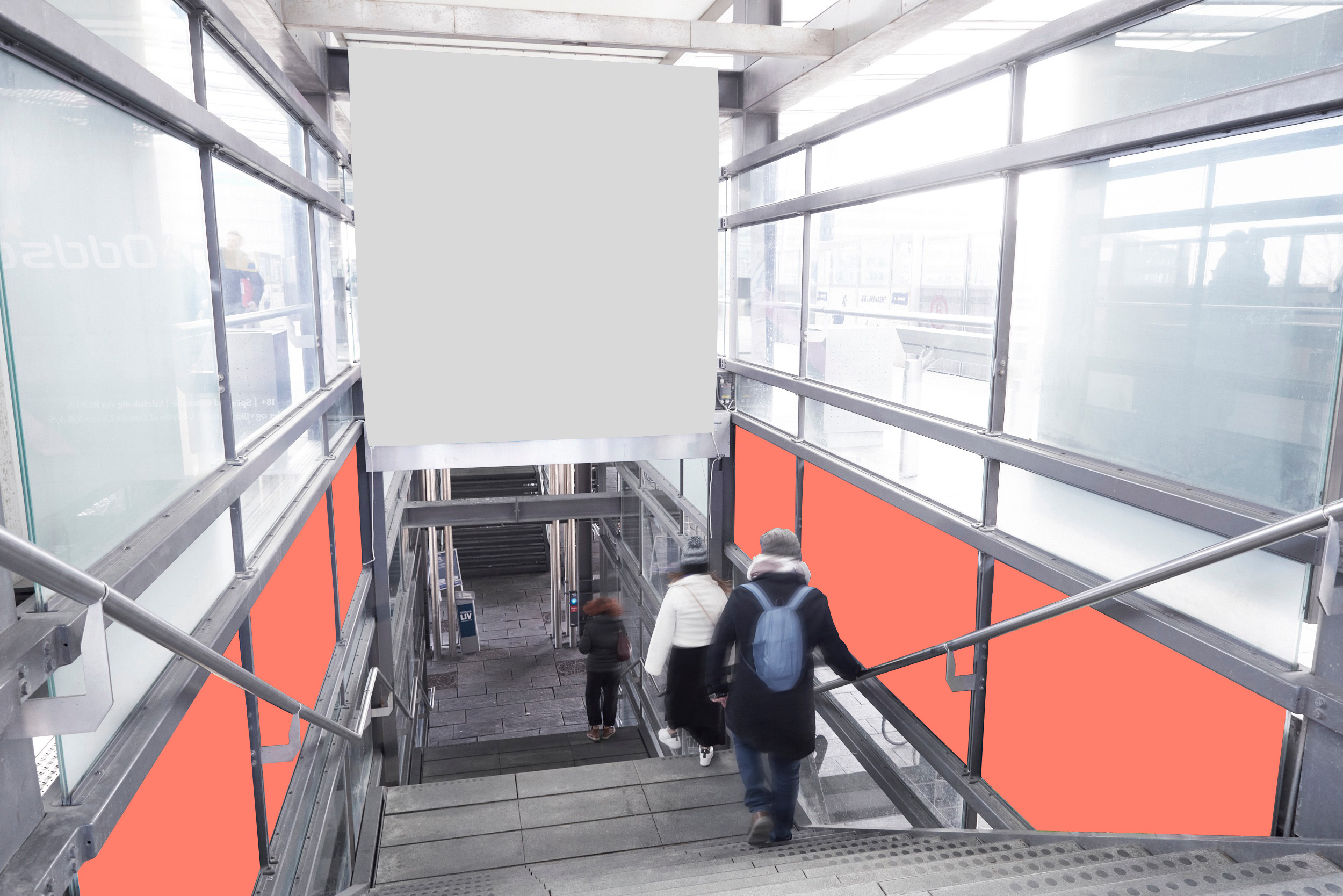

Format 1: Glass Railling Stairs

Specifications

The glass railings at the stairs are located at both ends of the platform, and the design is duplicated on both staircases. In addition, the design must be created in two versions: one for the glass railing on the right side and one for the left side. Each side consists of three formats (A, B, A) with identical dimensions, separated by a 120 mm gap, but arranged in a different order.

• A: 1410 × 1000 mm, 4 assets
• B: 2080 × 1000 mm, 2 assets

Text: Vectorized
Base color: Bleed to the edges
Layout: 1:1 scale
Crop marks: 10 mm bleed
Min. Resolution: 100 ppi‍‍
Colours: All images as well as Pantone and RGB colours must be converted to CMYK - Coated Fogra39
‍Delivery: As one single print-ready PDF containing all pages in the correct order, along with a separate PDF including the mockup.

Download

• Guidelines (PDF)
• Templates (InDesign)
• Mockup (InDesign)

‍

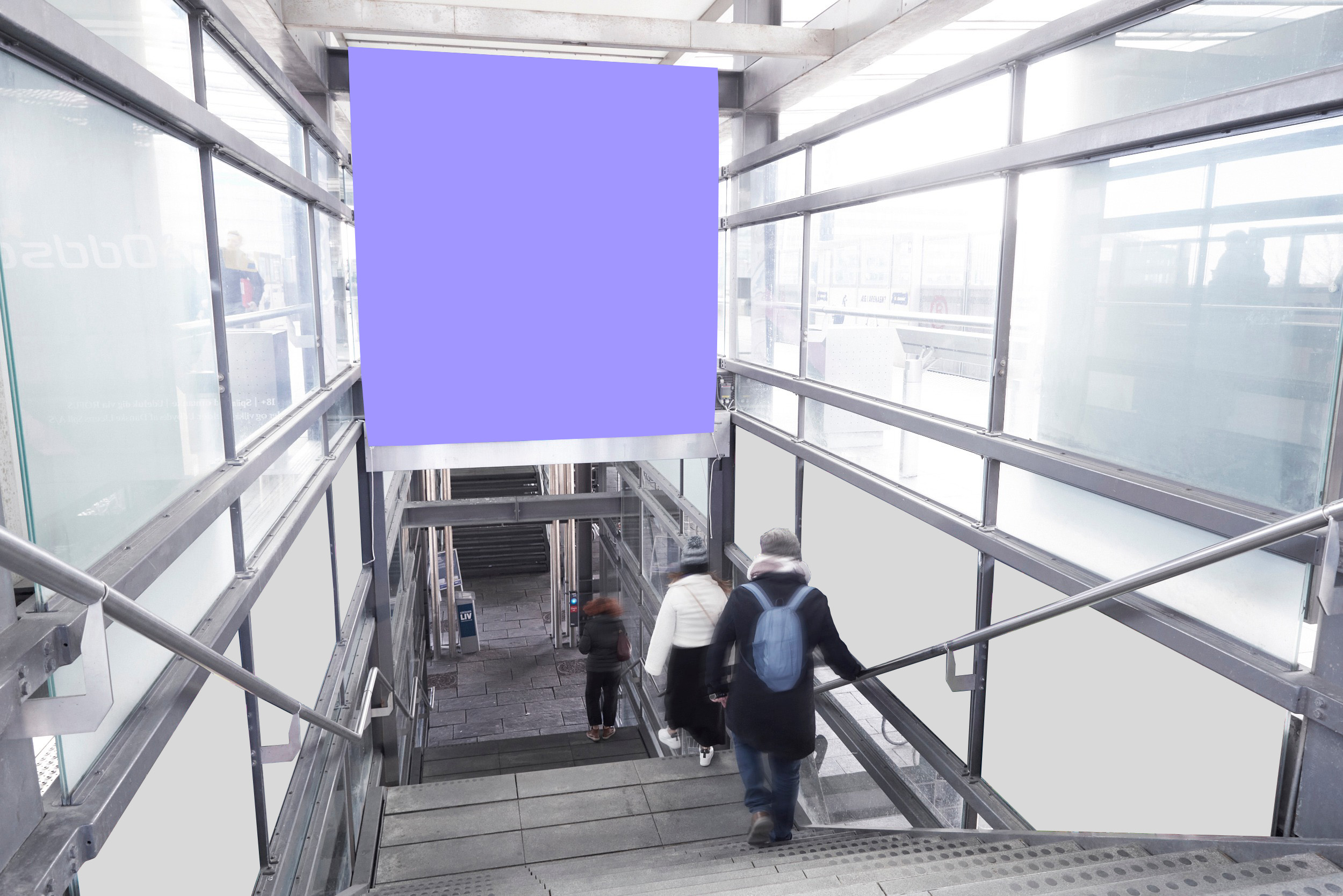

Format 2: Dobbeltsidet bannere

Specifications

The banner is double-sided and installed in two locations at the station,resulting in a total of four visible sides. The banner is mounted over a metalrod; therefore, a 300 mm filler graphic must be included in the center section of the layout.

• A: 2750 × 3575 mm (approx. 9.84 m²)
• Filler Graphic: 2750 × 300 mm (approx. 0.83 m²)
• B: 2750 × 3575 mm (approx. 9.84 m²)

Text: Vectorized
Base color: Bleed to the edges
Visible area: Design is visable from both sides
Layout: 1:10 scale
Crop marks: 20 mm bleed
Min. Resolution: 500 ppi
Colours: All images as well as Pantone and RGB colours must be converted to CMYK - Coated Fogra39
‍Delivery: As one single print-ready PDF containing all pages in the correct order, along with a separate PDF including the mockup.

Download

• Guidelines (PDF)
• Templates (InDesign)
• Mockup (InDesign)

‍

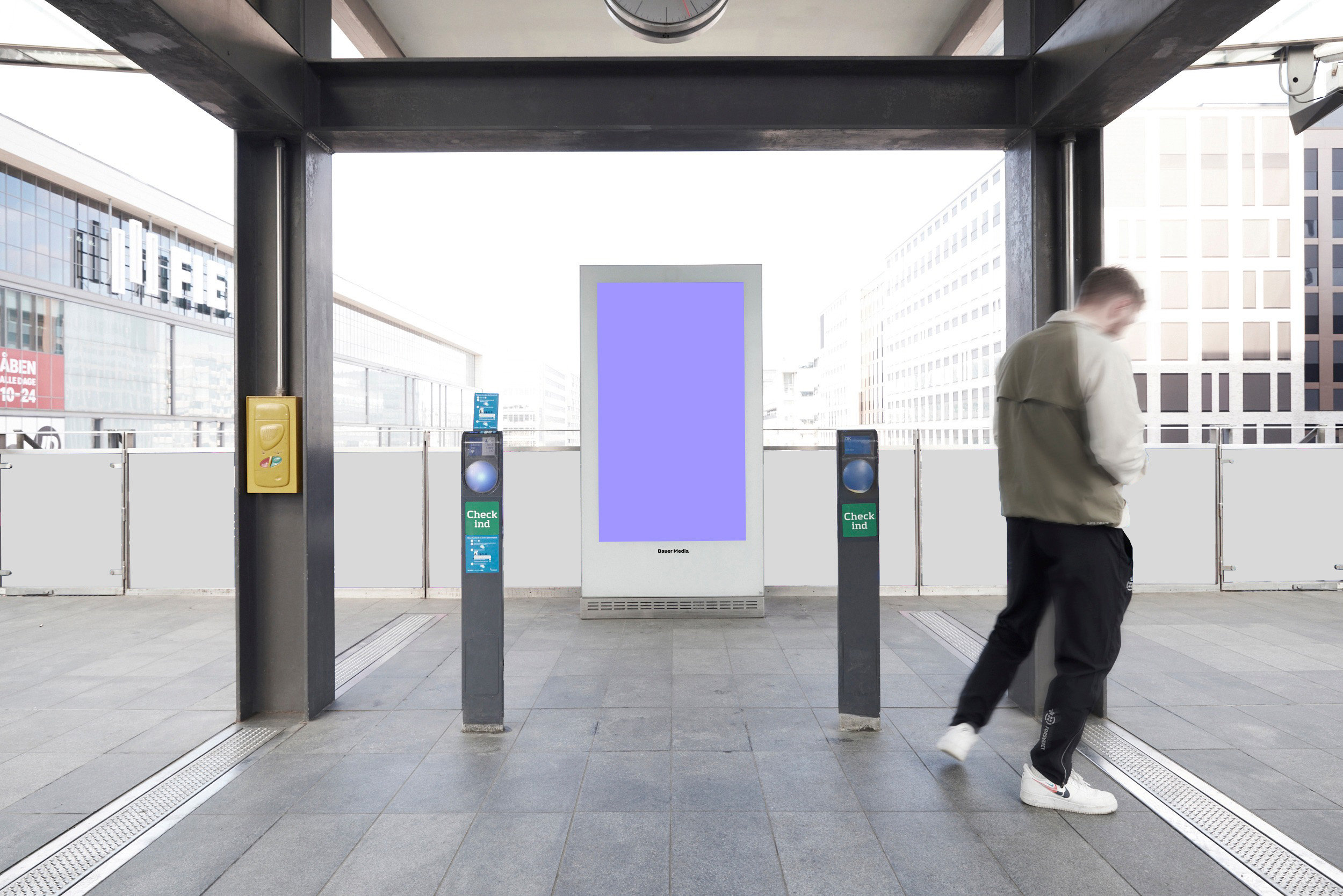

Format 3: Digital Adshel

Specifications

For Digital Adshel, separate technical specifications apply. These are available via this link and must be reviewed and adhered to when preparing and delivering the material.

‍

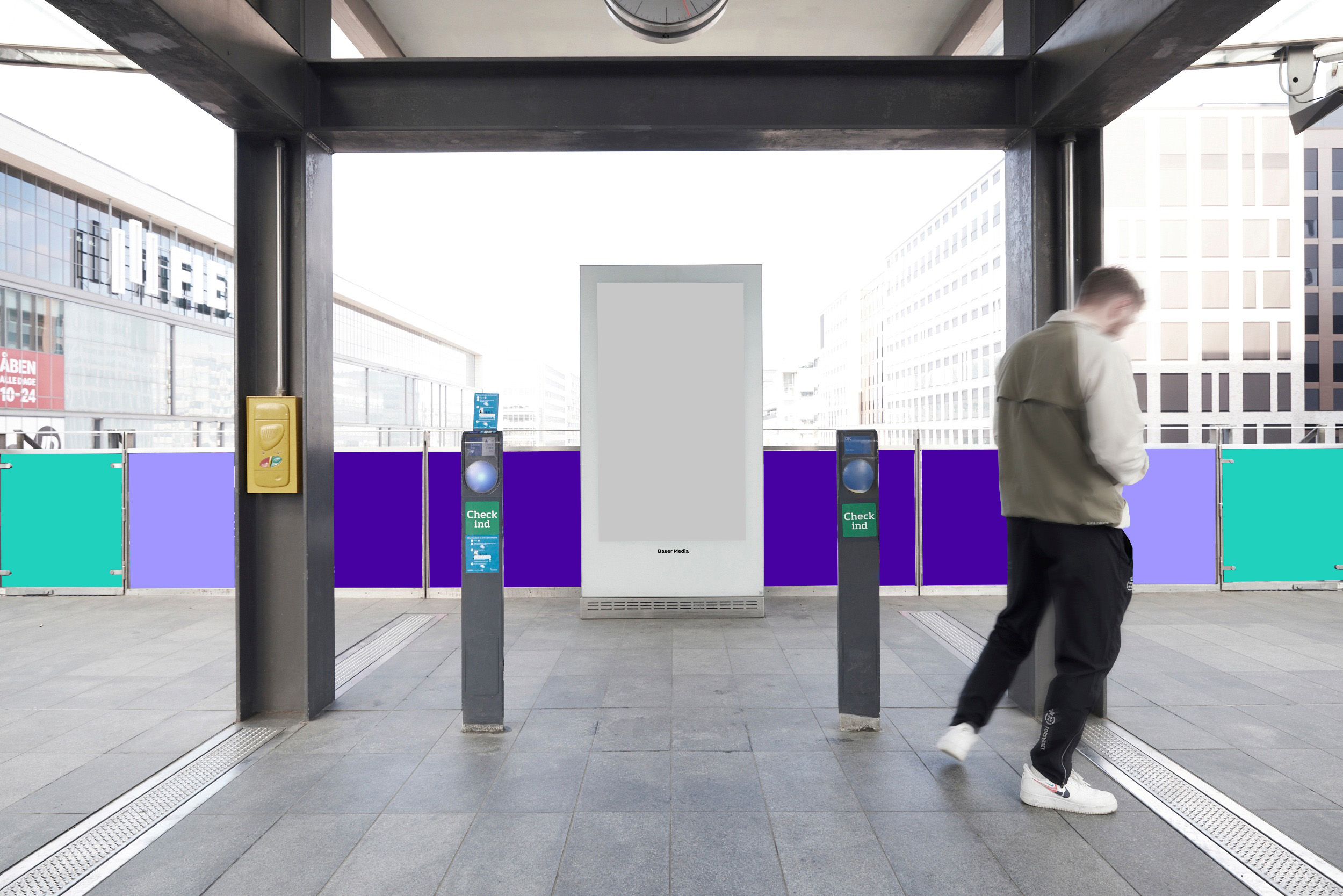

Format 4: Glass Railling Platform

Specifications

The glass railing is located at both ends of the platform.

• A: 890 x 990 mm, 2 assets
• B: 940 x 990 mm, 2 assets
• C: 1145 x 990 mm, 5 assets

Text: Vectorized
Base color: Bled to the edges
Visible area: Design is visable from both sides
Layout: 1:1 Scale
Crop marks: 10 mm
Min. Resolution: 100 ppi.‍‍
Colours: All images as well as Pantone and RGB colours must be converted to CMYK - Coated Fogra39
Delivery: As one single print-ready PDF containing all pages in the correct order, along with a separate PDF including the mockup.

Download

• Guidelines (PDF)
• Templates (InDesign)
• Mockup (InDesign)

‍

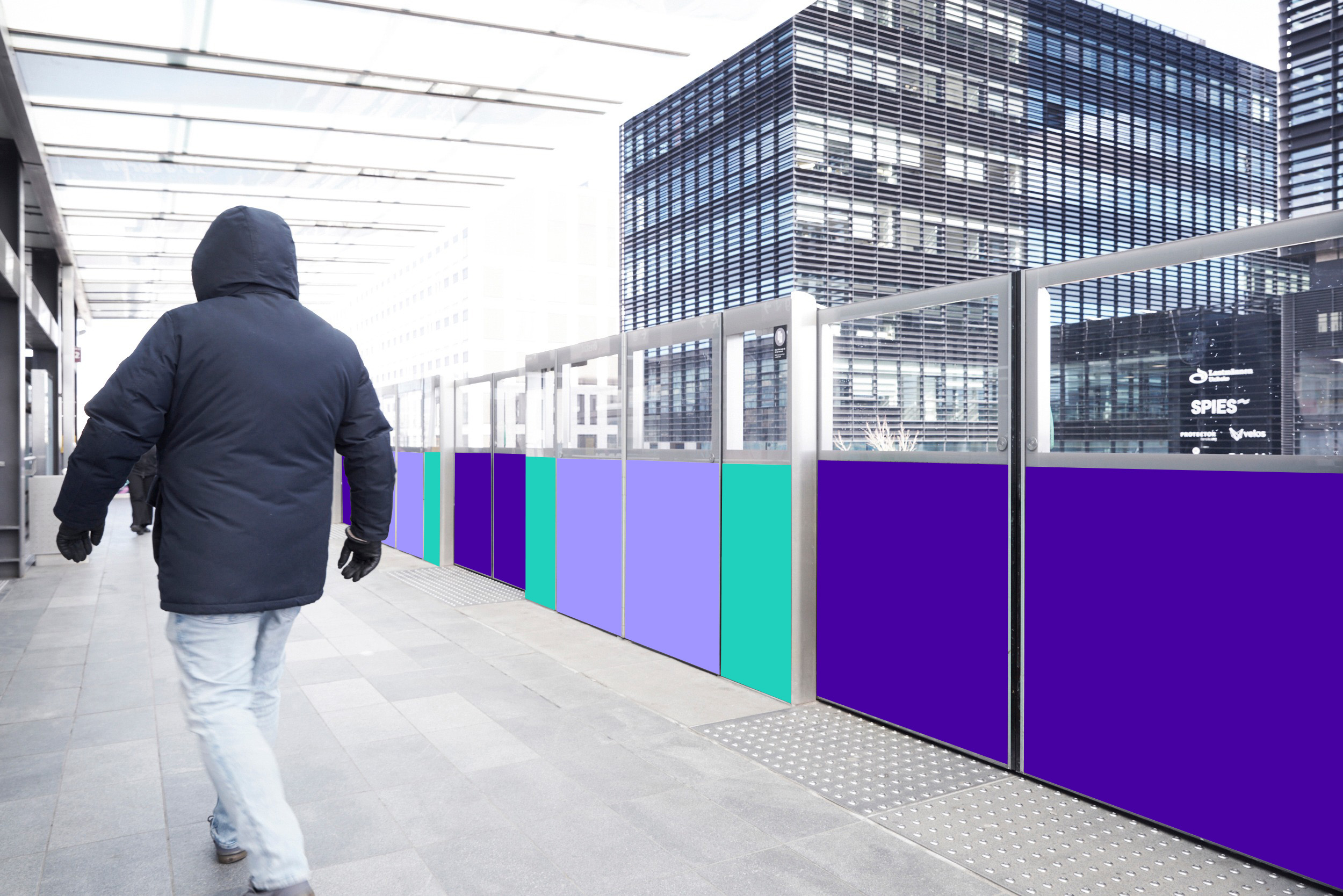

Format 5: Platform Screendoors

Specifications

46 units are required per track. Since the platform has two tracks, the total is 92 units.

• U1: 1550 x 1010 mm, 2 assets (Panel)
• U2: 1010 x 1010 mm, 20 assets (Panel)
• U3: 550 x 1010 mm, 12 assets (Panel)
• U4: 1060 x 1010 mm, 12 assets (Door)

Text: Vectorized
Base color: Bled to the edges
Visible area: Design is visable from both sides
Layout: 1:1 Scale
Crop marks: 10 mm
Min. Resolution: 100 ppi.‍
Colours: All images as well as Pantone and RGB colours must be converted to CMYK - Coated Fogra39
Delivery: As one single print-ready PDF containing all pages in the correct order, along with a separate PDF including the mockup.

Download

• Guidelines (PDF)
• Templates (InDesign)
• Mockup (InDesign)
